Changelog

Detailed Android SDK Specifications

716KB

Android SDK specs.zip

archive

Android SDK Specs

v4.4.0

May 29, 2025

⭐ IMPROVEMENTS

• Enhancements were made to the process of updating user profile attributes.

• The SDK has been updated to ensure that all session/init requests are sent with a callback.

v4.3.2

May 28, 2025

🛠 BUG FIXES

• A bug causing some API calls to be blocked or not dispatched under specific conditions has been resolved.

• Resolved an issue where the pushdismiss event was not sent while the app was in the background.

v4.3.1

May 9, 2025

🛠 BUG FIXES

• Resolved an issue in the init method (when called without a callback) that caused repeated requests under certain conditions.

• Fixed a crash issue by preventing multiple broadcast receiver registrations. The SDK now ensures single instantiation and safe registration of receivers.

v4.3.0

April 25, 2025

implementation 'com.netmera:nmcore:4.3.0'
implementation 'com.netmera:nmfcm:4.0.2'
implementation 'com.netmera:nmhms:4.0.1'

⭐ IMPROVEMENTS

Advanced View Hierarchy Tracking

• Child view elements inside ListView and RecyclerView components can now be tracked in more detail.

• Automatically collected fields are view id, view tag, and contentDescription

• This enhancement provides more meaningful insights into user interaction analytics.

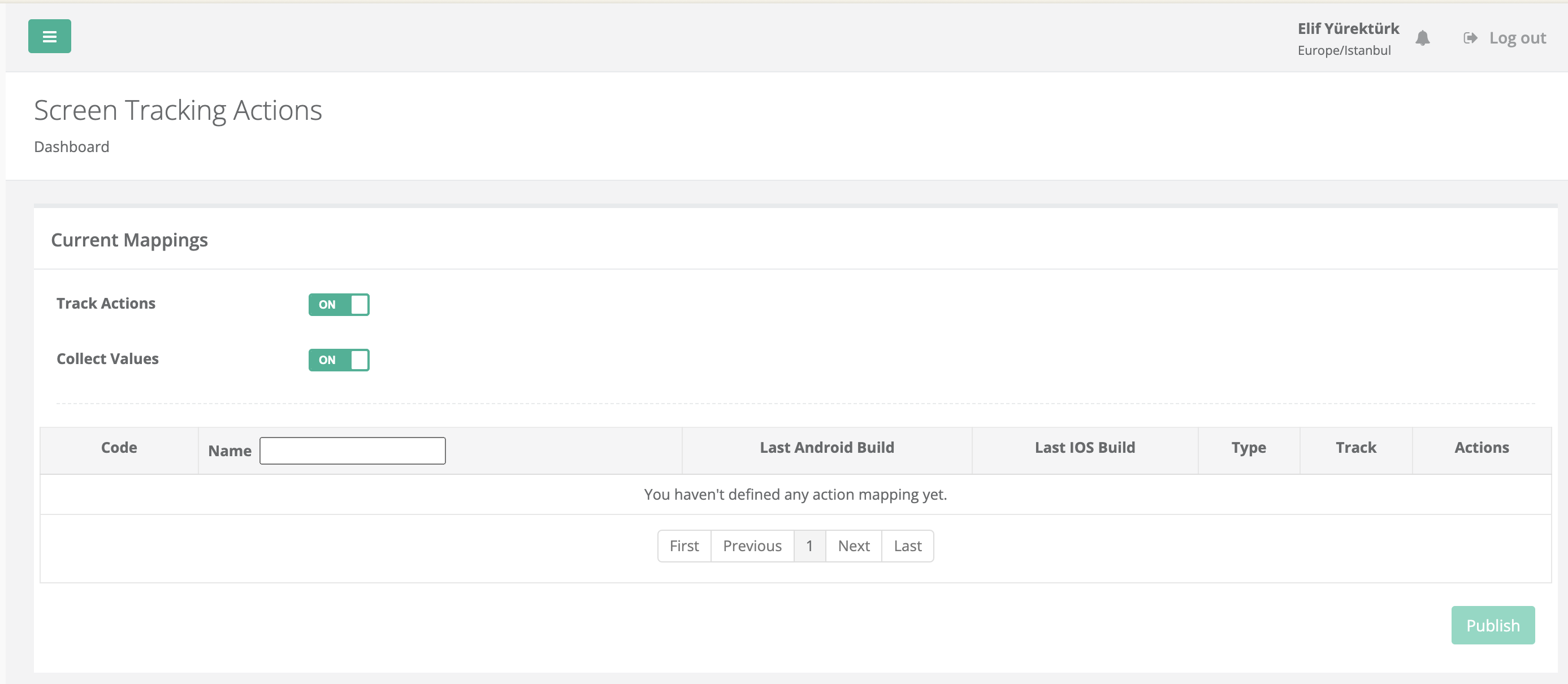

• To enable the SDK to collect these additional values, navigate to Settings > Screen Tracking > Actions on the panel, switch Collect Values to ON, and click the Publish button.

Push Event Enhancements

• A new parameter piid (Push Instance ID) has been added to push-related events.

• This allows each push notification to be tracked uniquely, enabling more precise event analysis.

🛠 BUG FIX

• Improved the handling of non-popup push types (e.g., standard or widget-based push notifications) to prevent attempts to open a popup when it is not intended.

v4.2.0

April 17, 2025

⭐ IMPROVEMENT

• Push callbacks have been updated to trigger after the SDK completes its related actions, allowing for more consistent and reliable behavior in application workflows.

🗑️ DEPRECATED

• The crash tracker component has been removed from the SDK.

v4.0.12

April 11, 2025

🛠 BUG FIX

• Background Thread Initialization Issue Resolved Fixed an issue where background push notifications were not being processed correctly if the SDK init method was called from a background thread.

Updated Dependencies:

implementation 'com.netmera:nmcore:4.0.12'
implementation 'com.netmera:nmfcm:4.0.1'
implementation 'com.netmera:nmhms:4.0.1'

Integration Notes for Custom FCM and HMS Implementations

If your platform uses a custom FirebaseMessagingService or HmsMessageService, you need to update your AndroidManifest.xml file to avoid service conflicts with Netmera.

1. Manifest Configuration

For Custom FirebaseMessagingService:

If you are using your own FirebaseMessagingService class, make sure to add the following line to your AndroidManifest.xml to remove Netmera's default FCM service:

<service
    android:name="com.netmera.nmfcm.NMFirebaseService"
    tools:node="remove" />

For Custom HmsMessageService:

If you are using your own HmsMessageService class, include the following entry in your manifest to remove Netmera’s default HMS service:

<service
    android:name="com.netmera.nmhms.NMHuaweiService"
    tools:node="remove" />

2. Handling Push Messages

Starting from Netmera SDK version 4.0.12, the method:

Netmera.isNetmeraRemoteMessage(remoteMessage)

has been deprecated. Please update your implementation as shown in title 3.

Before (Deprecated in 4.0.12):

override fun onMessageReceived(remoteMessage: RemoteMessage) {
    super.onMessageReceived(remoteMessage)
    if (Netmera.isNetmeraRemoteMessage(remoteMessage)) {
        Netmera.onNetmeraPushMessageReceived(remoteMessage)
    } else {
        // Handle other messages
    }
}

3. Updated Implementations

For Custom FirebaseMessagingService (FCM):

kotlinCopyEditoverride fun onMessageReceived(remoteMessage: RemoteMessage) {
    super.onMessageReceived(remoteMessage)
    if (Netmera.isNetmeraRemoteMessage(remoteMessage.data)) {
        Netmera.onNetmeraPushMessageReceived(remoteMessage)
    } else {
        // Handle other messages
    }
}

For Custom HmsMessageService (HMS):

kotlinCopyEditoverride fun onMessageReceived(remoteMessage: RemoteMessage) {
    super.onMessageReceived(remoteMessage)
    if (Netmera.isNetmeraRemoteMessage(remoteMessage.dataOfMap)) {
        Netmera.onNetmeraPushMessageReceived(remoteMessage)
    } else {
        // Handle other messages
    }
}

v4.0.11

March 28, 2025

⭐ IMPROVEMENT

• Added the ability to disable the Boot Receiver module, providing greater flexibility in managing its behavior based on application requirements.

Implementation

To disable the Boot Receiver, add the following code block to your AndroidManifest.xml file:

<receiver
    android:name="com.netmera.NetmeraBootReceiver"
    tools:node="remove"/>

v4.0.1 Update for nmfcm and nmhms

April 9, 2025

• To prevent version conflicts with Google’s Material library, the Material components have been removed from the nmfcm and nmhms packages.

How to Update Your Integration:

Please update your SDK dependencies as follows:

implementation 'com.netmera:nmcore:4.0.11'
implementation 'com.netmera:nmfcm:4.0.1'
implementation 'com.netmera:nmhms:4.0.1'

v4.0.10

February 25, 2025

🚀 FEATURE

• Added a Open Widget option to the Push Click Action section during campaign creation. This allows users to be directed to the relevant widget within the platform directly from the push notification.

v4.0.9

February 25, 2025

🚀 FEATURE

• Added a new timezone parameter in ids block. This parameter allows SDKs to communicate the device’s timezone ID.

v4.0.8

February 17, 2025

🚀 FEATURE

• Introduced Push Notification Grouping in the notification center. Notifications sent from the same platform can now be grouped using the thread-id parameter based on specific categories or events. This enhancement improves notification management and provides a better user experience.

Sample Code:

curl --location --request POST 'https://restapi.netmera.com/rest/3.0/sendBulkNotification' \
--header 'X-netmera-api-key: YOUR_API_KEY' \
--header 'Content-Type: application/json' \
--data-raw '{
  "message": {
    "title": "Your Push Notification Title",
    "platforms": ["ANDROID", "IOS"],
    "text": "Your push message content",
    "threadId": "your-thread-id"
  },
  "target": {
    "sendToAll": true
  }
}'

v4.0.7

January 23, 2025

🛠 BUG FIX

• Resolved an issue where deep linking was not functioning when the app was in a killed state on Android devices.

For implementation, use the following dependencies:

implementation 'com.netmera:nmcore:4.0.7'
implementation 'com.netmera:nmfcm:4.0.0'
implementation 'com.netmera:nmhms:4.0.0'

v4.0.6

January 6, 2025

🛠 BUG FIX

• The issue preventing events from triggering in the autotracking functionality has been resolved.

v4.0.5

January 3, 2025

⭐ IMPROVEMENT

• Introduced the region parameter under the device info object in the initial init request.

v4.0.4

January 3, 2025

🚀 FEATURE

• Added instant show functionality for widgets and in-app messages.

v4.0.3

December 16, 2024

🛠 BUG FIX

• Glide Dependency Conflict: Resolved an issue causing conflicts with the Glide dependency.

v4.0.2

December 5, 2024

⭐ IMPROVEMENT

• Geofence Event Enhancement: Enhanced the n:gu geofence event to ensure it is sent even when the application is killed.

v4.0.1

December 5, 2024

⭐ IMPROVEMENTS

• Push Register Logic Enhancement: Improved push register status logic for devices running Android 13 and above.

v4.0.0

November 14, 2024

⭐ IMPROVEMENTS

• Removal of the Android Startup Library: The Android startup library has been removed.

• Background Thread Management: The Netmera SDK has been updated to work on a background thread. You no longer need to explicitly call the SDK on a background thread.

These changes simplify SDK integration and improve its performance in background tasks.

This SDK release introduces changes to your integration process. Please see the details below.

Revised Initialization Code:

When initializing Netmera SDK add the code below. A detailed explanation can be found on Android SDK Integration page with the title #initializing-netmera-sdk-after-android-sdk-version-4.0.0.

Kotlin

override fun onCreate() {
    super.onCreate()
// Must be called on the Main Thread
    registerActivityLifecycleCallbacks(NMActivityLifecycleCallbacks(this))

    val configBuilder = NetmeraConfiguration.Builder()
        .apiKey(apiKey)
        .firebaseSenderId(PropertiesUtil.gcmSenderId)
        .huaweiSenderId(PropertiesUtil.hmsSenderId)  // Init example if you are going to call Huawei services
        .logging(true)  // Allows Netmera logs to appear in logcat
        .addProvider(NMFCMProvider())
        .addProvider(NMHMSProvider())
    Netmera.init(configBuilder.build(this))
}

Java

@Override
public void onCreate() {
    super.onCreate();
    // Must be called on the Main Thread
    registerActivityLifecycleCallbacks(new NMActivityLifecycleCallbacks(this));

    NetmeraConfiguration.Builder configBuilder = new NetmeraConfiguration.Builder();
    configBuilder.apiKey(apiKey)
                 .firebaseSenderId(PropertiesUtil.gcmSenderId)
                 .huaweiSenderId(PropertiesUtil.hmsSenderId)  // Init example if you are going to call Huawei services
                 .logging(true);  // Allows Netmera logs to appear in logcat
                 .addProvider(new NMFCMProvider())
                 .addProvider(new NMHMSProvider())
    Netmera.init(configBuilder.build(this));
}

If you are using SDK version 4.0.0 or later, or performing an SDK update for 4.0.0 or later, do not include the following lines of code from previous SDK versions. If these lines are already present in your code, please remove them:

// Removed components in SDK 4.0.0
NMInitializer.initializeComponents(this)
AppInitializer.getInstance(this).initializeComponent(NMFCMProviderInitializer::class.java)
AppInitializer.getInstance(this).initializeComponent(NMHMSProviderInitializer::class.java)

These changes ensure smoother SDK integration and better background thread handling. Be sure to update your code accordingly.

v3.15.3

November 1, 2024

⭐ IMPROVEMENTS

• Updated AES algorithms within the SDK to AES/GCM/NoPadding.

• Added the "Not Determined" option to the checkNotificationPermission method.

v3.15.2

October 17, 2024

⭐ IMPROVEMENTS

• Push/Enable Issue Improvement:

Enhanced the functionality to address problems related to enabling push notifications.

• Kill Method Enhancement:

Improved the kill method functionality, allowing it to work even in scenarios where the init method has not been called.

v3.15.1

October 14, 2024

⭐ IMPROVEMENTS

• Notification Permission Handling:

Updated the requestNotificationPermission method to redirect users to settings on the third and subsequent calls, enhancing the permission request flow.

⭐ FEATURES

• Notification Permission Check:

Added the checkNotificationPermission method to the SDK, allowing developers to programmatically verify the current notification permission status.

Notification Permission Handling with Netmera.checkNotificationPermission()

The Netmera.checkNotificationPermission() method provides insight into the user's current notification permission status. Based on the response, it returns one of the following statuses: BLOCKED, DENIED, or GRANTED. This allows you to tailor the notification permission request flow and improve user experience:

• BLOCKED:

  • Notification permission is blocked by the system settings, meaning the user has previously disallowed notifications at the system level. In this case, additional permission requests cannot be shown to the user directly. You may consider guiding the user to the settings page to enable notifications manually.

• DENIED:

  • The user was previously asked for notification permission but declined. You may choose to request permission again, but it’s important to approach this carefully to avoid annoying the user. Consider implementing a gradual or conditional re-prompt strategy based on user actions.

• GRANTED:

  • The user has granted notification permission. The application can now send notifications without the need for further permission checks, allowing seamless user engagement through push notifications.

By using Netmera.checkNotificationPermission(), you can manage calls to requestNotificationPermission() more effectively based on the permission status, resulting in a more thoughtful and user-centric approach to notification permissions.

🛠 BUGFIXES

• Media Content in Push Notifications:

Fixed an issue where media content in push notifications was not loading on some devices, ensuring more consistent media display.

• Widget Background Color:

Resolved an issue where sending widgets back-to-back caused the background to turn white unexpectedly.

• Delayed Web Page Pushes:

Addressed an issue where "Show Web Page" push notifications were opening slowly or failing to open, improving response time and reliability.

• App Tracker Limit Issue:

Fixed an issue where the app tracker failed when the app tracked list parameter exceeded 10KB, allowing it to handle larger data sets effectively.

• Item Click Action for Web Pages:

Resolved a problem where the app wouldn’t open when "Show Web Page" was selected as the item click action, ensuring correct behavior on selection.

We recommend updating to this version to benefit from these new features, improvements, and fixes, which enhance performance, reliability, and user experience.

v3.15.0

September 27, 2024

To incorporate this feature, use the following implementations:

implementation 'com.netmera:nmcore:3.15.0'
implementation 'com.netmera:nmfcm:3.13.1'
implementation 'com.netmera:nmhms:3.12.1'

⭐ FEATURE

SSL Pinning Support:

• Added SSL pinning to enhance security. This feature allows specifying trusted SSL certificates for secure communication.

To configure SSL pinning, use the following example code:

Single SSL Pin:

NetmeraConfiguration.Builder configBuilder = new NetmeraConfiguration.Builder();
configBuilder.baseUrl(baseUrl)
             .apiKey(apiKey)
             .huaweiSenderId(PropertiesUtil.huaweiSenderId)
             .firebaseSenderId(PropertiesUtil.gcmSenderId)
             .logging(true)
             // SET SSL PIN KEYS
             .sslPinKeys(
                 // Replace with the correct sha256 hash
                 "sha256/T9g7qeNuY3SHc4tWSlqoHwWb+0Y8whUYn0uuAB3CzHM="
             );

Multiple SSL Pins:

List<String> sslPinKeys = Arrays.asList(
    // Replace with correct sha256 hashes
    "sha256/A1C7RK0nAsHviju64ImO48VgSY5FdOMxv9GJh0uMXJQ=",
    "sha256/8Rw90Ej3Ttt8RRkrg+WYDS9n7IS03bk5bjP/UXPtaY8=",
    "sha256/Ko8tivDrEjiY90yGasP6ZpBU4jwXvHqVvQI0GS3GNdA="
);

NetmeraConfiguration.Builder configBuilder = new NetmeraConfiguration.Builder();
configBuilder.baseUrl(baseUrl)
             .apiKey(apiKey)
             .huaweiSenderId(PropertiesUtil.huaweiSenderId)
             .firebaseSenderId(PropertiesUtil.gcmSenderId)
             .logging(true)
             // SET SSL PIN KEYS
             .sslPinKeys(sslPinKeys);

Error Logs:

• Error log if the SSL pins are invalid:

• Error log when improper SSL pinning:

We recommend updating to this version to enhance security with SSL pinning capabilities.

v3.14.5

September 10, 2024

🛠 BUG FIXES

• Location Authorization Event Update:

Added separate parameter breakdowns for Always and When in Use options in the Location Authorization event.

v3.14.4

August 28, 2024

🛠 BUGFIX

• Resolved an issue with the "Time in App" event.

This update ensures more accurate tracking of user activity within the app.

v3.14.3

August 19, 2024

The versions nmcore 3.14.3, nmfcm 3.13.0, and nmhms 3.12.0, which include the Target 34 update, have been published. Version changes include:

⭐ IMPROVEMENT

• The targetSdk version of the Netmera Android SDK has been upgraded to 34.

🛠 BUGFIX

• A bug that prevented the Geofence (n:gu) event from being sent has been fixed.

v3.14.2

July 24, 2024

🛠 BUGFIX

• Resolved an issue where, on devices running Android 13 and above, if push notifications were enabled without sending a push disable request during the initial installation, the user would appear as "not registered" on the panel.

We highly recommend that customers using versions 3.14.0 and 3.14.1 upgrade to this latest version for improved stability and performance.

v3.14.1

July 3, 2024

This update includes a critical bug fix to improve the stability and performance of your applications.

🛠 BUGFIX

• A fix has been added to address ANR (Application Not Responding) issues.

v3.14.0

June 3, 2024

⭐ IMPROVEMENTS

• Necessary Proguard rules have been added to the SDK to support Gradle 8 R8 fullmode configuration.

• Improved the push enable and push disable scenarios for better functionality.

v3.13.1

March 25, 2024

⭐ IMPROVEMENTS

• The Behavior Manager has been removed from the project. This change is part of our broader initiative to improve SDK efficiency and ensure smoother operation within your applications.

v3.13.0

March 7, 2024

⭐ IMPROVEMENTS

• Improved the background location widget for improved functionality and performance.

v.3.12.1

February 26, 2024

⭐ FEATURE

• A new feature has been added: the Netmera.kill() method. If this method is called, Netmera will remain in a "kill" state until it is re-initialized.

v3.12.0

January 25, 2024

⭐ IMPROVEMENTS

NMCore:

• Enhanced security by enforcing TLS version 1.2 and above

Note: This results in an increased minimum Android version to 21 (Android 5.0).

• Strengthened security measures by removing the MD5 encryption algorithm, replacing it with a more secure system that generates a random byte array on each client.

• Introduced a default icon to the SDK to address situations where NotificationManager encounters difficulties locating the app icon.

NMFcm:

• Upgraded Firebase Messaging version to 23.1.2 to support FCM HTTP v1.

For detailed information, refer to Firebase Cloud Messaging - Migrate to FCM HTTP v1.

Important Note about Migrating from legacy FCM APIs to HTTP v1:

Android SDK version 3.12.0 requires a minimum Firebase Messaging library version of 20.3.0 for FCM HTTP v1. Users with their own Firebase integration should ensure a minimum version of 20.3.0. The recommended version is 23.1.2 and above. However, if users prefer to stay on a lower version, they must use a minimum of version 20.3.0, as FCM enforces this requirement after June.

Important Note: Android SDK version 3.12.0 raises the minimum supported Android version to 21 (Android 5.0).

v3.11.5

January 15, 2024

⭐ IMPROVEMENT

• The SDK initialization time has been improved by updating the initialization mechanism.

🛠 BUGFIX

• Addressed and fixed the initialization problem occurring when Android startup is in a closed state.

v3.11.4

January 9, 2024

🛠 BUGFIX

• In the user update callback, the response was sometimes returned as null. This has been addressed, and error responses will now provide more detailed information.

v3.11.3

December 11, 2023

⭐ IMPROVEMENT

• App version name and app version code are now included in request headers.

• Full names of classes are sent for Auto Tracking instead of simple names.

• onSuccess and onFailure callbacks are added to the Init method. Example usage:

Netmera.init(configBuilder.build(this), new NMInitSessionListener() {
    @Override
    public void onSuccess() {
        Log.i("NetmeraApp", "Session init completed");
    }

    @Override
    public void onFailure(String error) {
        Log.e("NetmeraApp", "Error occurred when trying to init session with Netmera. Error::"+error );
    }
});

🛠 BUGFIX

• Developed a fix for the User Update issue, specifically addressing a problem that occurred after syncing user updates.

v3.11.2

December 5, 2023

⭐ IMPROVEMENT

• Added the onDeeplinkOpen callback.

🛠 BUGFIX

• Fixed an issue related to sending multiple push/register requests.

• Prepared a fix for the constraint layout problem.

FCM Updates (3.11.0)

🛠 BUGFIX

• Prepared a fix for the autostart problem.

nm hms v.3.11.0

Android HMS Package Update

HMS Location Service Fix: The fix for the HMS location service issue has been introduced with com.netmera.nmhms:3.11.0. In previous SDK versions where a lower version of nmhms was used, errors related to Huawei location libraries may occur.

🛠 BUGFIX

• Resolved the HMS location problem.

⭐ IMPROVEMENT

• Updated the HMS library.

v3.11.1

November 22, 2023

⭐ IMPROVEMENTS

• Enhanced the User Update method with onSuccess and onFailure callbacks.

• Made adjustments to the web view.

User Update Method Details

You can continue using the existing method, and with version 3.11.1, you now have the option to listen for results by adding a listener.

Example Usage:

Netmera.updateUser(netmeraUser, new NMUpdateUserListener() {
            @Override
            public void onSuccess() {
                Log.i("Netmera App", "Netmera User was updated successfully");
                Toast.makeText(UpdateUserActivity.this, "NetmeraUser was successfully updated.", Toast.LENGTH_SHORT).show();
            }

            @Override
            public void onFailure(@Nullable String error) {
                Log.i("Netmera App", "Netmera User couldn't be updated successfully :: " + error);
                Toast.makeText(UpdateUserActivity.this, "Netmera User couldn't be updated successfully :: \"+ error", Toast.LENGTH_LONG).show();
            }
        });

v3.11.0

October 31, 2023

Note: This is a beta version. Do not update without contacting Netmera.

Android Netmera Core version 3.11.0 has been released with the following changes:

• Integration of the new auto-tracking structure.

v3.10.4

October 26, 2023

The Android SDK nmcore version 3.10.4 is now live.

⭐ FEATURE

• An enhancement for coupon code fetch requests, fetchCoupons, has been added.

🛠 BUGFIX

• The issue where the slt parameter was not updated when performing a user update with an existing user in the panel has been resolved.

• A fix has been added to address the baseUrl crash problem.

v3.10.3

⭐ IMPROVEMENTS

• Added slt parameter to request containing each ids block

• The widget callback has been improved and can be used as in this page.

3.10.2

Note: For this version, you need to use version 21.0.1 of the com.google.android.gms:play-services-location package.

⭐ IMPROVEMENTS

• com.google.android.gms:play-services-location package upgraded to version 21.0.1

🛠 BUGFIX

• Fixed the bug that caused the change to not appear in the Netmera dashboard when location permission was changed from the settings.

v3.10.1

⭐ IMPROVEMENTS

• Target API level was upgraded to 33.

🛠 BUGFIX

• Play core library conflict was fixed.

v3.10.0

⭐ IMPROVEMENTS

• Moved user identity and update operations to the backend for better efficiency.

v3.9.19

• Fixed in-app message callback bug in debug mode.

Details

We have fixed a bug related to in-app message callbacks. Previously, in debug mode, the "onInAppMessageShown" and "onInAppMessageOpen" functions were not triggered in the NMInAppMessageActionCallbacks class during banner push tests. With this update, the callbacks will now work as expected, ensuring a seamless user experience with in-app messages.

• Resolved application launch issue with push notifications in kill state.

Details

In the previous version (3.9.18), there was an issue where the application did not launch when a push notification was clicked while the application was in the kill state. We are happy to announce that this problem has been resolved, and now the application will start correctly when a push notification is clicked, regardless of its state.

v3.9.18

⭐ IMPROVEMENTS

• Email Preference - We have introduced a new method to manage email permissions more efficiently.

Details

We have introduced a new method to manage email permissions more efficiently. With the following method, you can easily control email permissions for your users:

public codepublic static void setEmailPermission(boolean isAllowed);

By calling Netmera.setEmailPermission(false), you can remove email permission for your users on your side. On the other hand, calling Netmera.setEmailPermission(true) allows you to grant permission for emails.

v3.9.17

⭐ IMPROVEMENTS

• Listing the pushes in the notification center can now be done according to the piid (push instance id) value.

Details

.usePushInstanceId(true);

// =>If you want pushes to be listed by piid(push instance id) in notification center, set the above method to true. The default value is pid(push id).

Problem: Currently, pushes are listed in the device's notification center based on the pid (push id) value. In the case of transactional pushes with the same pid value, modifying the content and sending the same transactional push would only display the most recent push in the notification center. Previous pushes were overwritten.

A development has been made to allow developers to list pushes according to the piid when desired.

Example usage: Line 20

🛠 BUGFIX

• Resolved the issue where the onPushOpen callback was not working when the button click action was set to "nothing".

Details

When a button was set in a push notification with the button click action set to "nothing," expecting no action to be taken by the SDK, to receive the payload from the callback and perform their own action. However, the callbacks were not working. This issue has been fixed.

v3.9.16

⚒️BUGFIX

• The push token crash issue has been resolved.

Crashes

v3.9.15

The version numbers are as follows:

nmcore - 3.9.15

nmfcm - 3.9.5

nmhms - 3.9.6

⚒️BUGFIX

• The issue of the slider and carousel images not being accessible in push notifications, resulting in the notifications not being displayed, has been resolved.

• The problem of email and msisdn being sent as null in the user update request, causing them to be deleted from the panel, has been fixed.

v3.9.13

⚒️ BUGFIX

• The solution to the mail crash issues has been implemented.

• The problem of the application coming to the foreground despite the actions of push click and push button click being set to "nothing" has been resolved.

Push Click Details

You can add buttons to push notifications.

1. In the panel, go to Setting > Button Set page. After defining a new button set using Create New Button Set, click on Publish to Devices button. Then the button set will be available for use.

1. When creating a new push notification in Messages > Campaign page, in the Setup step, select Add Button (Interactive) to use the button set you defined.

1. In the "What" step, select the button set you added to the panel.
